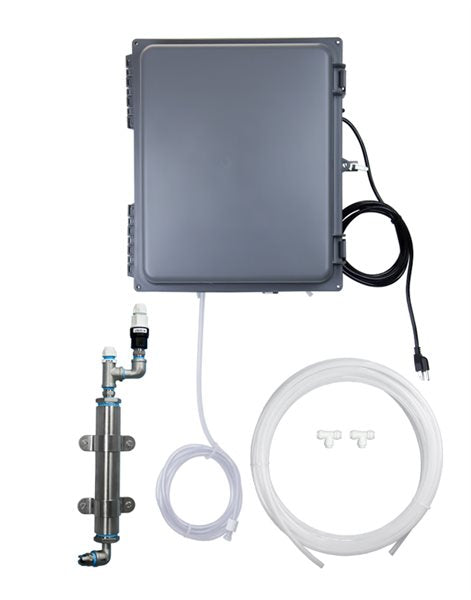

Twin Line Concentrate Doorway Foam Unit

Wall-mounted, air- and electric-powered twin-line concentrate foam unit designed for doorway applications. Supports up to three twin-line nozzle assemblies with a maximum total run distance of 100 feet and includes adjustable repeat-cycle timers.

FEATURES

• Power Type: Compressed air, electricity
• Chemical Pickup Type: Draws from concentrated product
• Dilution Ratio Range (Water:Chemical): 38:1 to 183:1
• Product Capacity: Draws from one product
• Suction Line: 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
• Flow Rate: 2 gal/min (7.6 L/min)
• Pump Seals: Santoprene, Viton, or Kalrez
• Timer Operation: Repeat cycle
• Coverage Area:
  • One nozzle: up to 9 × 5 ft. (2.7 × 1.5 m)

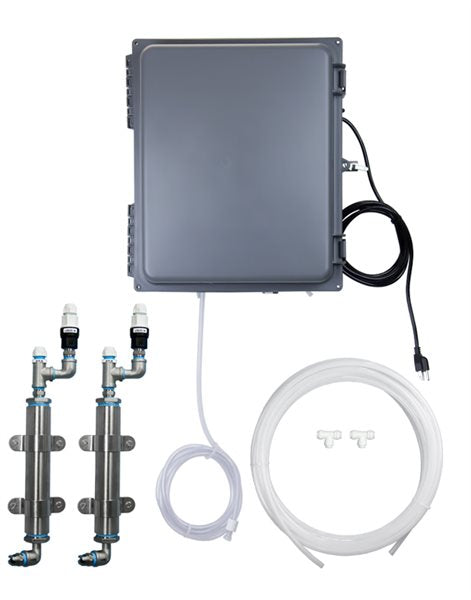

  • Two nozzles: up to 8 × 4 ft. (2.4 × 1.2 m) per nozzle

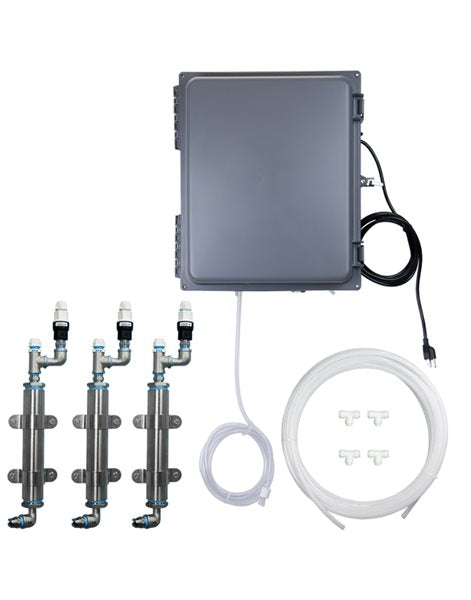

  • Three nozzles: up to 6 × 3 ft. (1.8 × 0.9 m) per nozzle
• Fan Tip:
  • One nozzle: ST80200SS
  • Two nozzles: ST80100SS
  • Three nozzles: ST8060-12SS
• Nozzle Type: Twin-line stainless steel nozzle assembly (NZA-DS-TL-1)
• Nozzle Capacity: One control box supports up to three nozzle assemblies
• Maximum Nozzle Distance: Combined distance between control box and nozzle(s) must not exceed 100 ft. (30.5 m)
• Tubing/Fitting Size: Designed for 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)

REQUIREMENTS

• Compressed Air: 40–80 PSI (2.8–5.5 bar) at 5–10 CFM (141.6–283.2 L/min)
• Water Pressure: 10–100 PSI (0.7–6.9 bar)
• Backflow Prevention Required (consult local plumbing ordinances)
• Liquid Temperature Range: 40–100°F (4.4–37.8°C)
• Electrical: 120 VAC, 60 Hz, 2 amps, GFCI-protected outlet
• Operating Voltage: 120 VAC
• Chemical products must be compatible with unit materials and pump seals; consult SDS or manufacturer recommendations for compatibility information.
