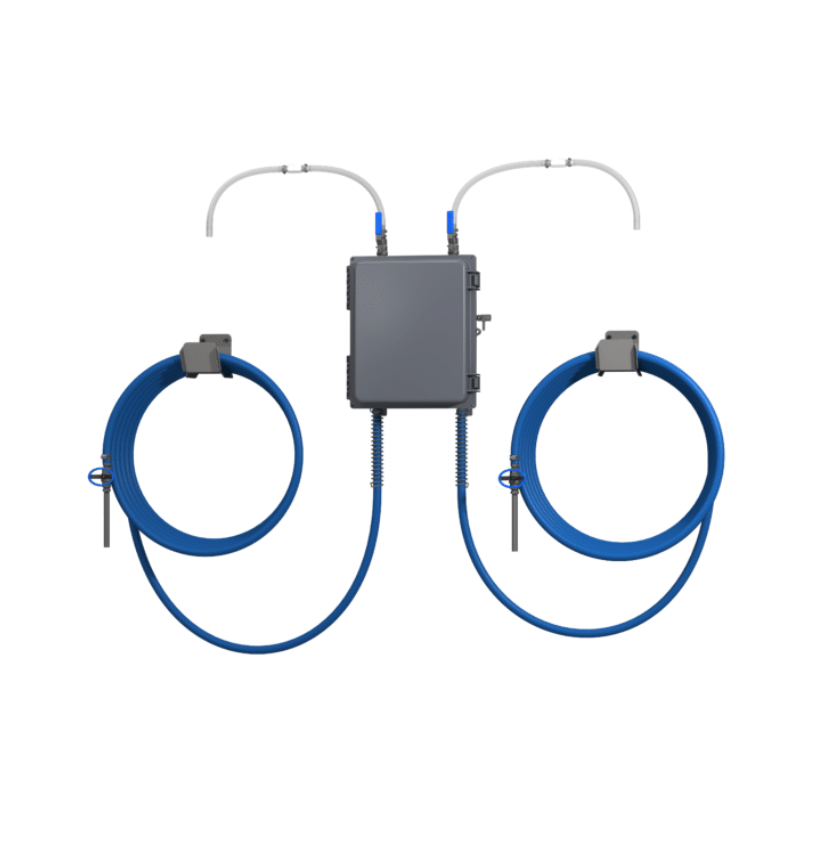

Central Dual Foam Station

Features

• Central foam system drop station designed for pre-mixed chemical delivery
• Dual foam systems integrated into a shared enclosure with fully independent operation
• Powered by compressed air for reliable, high-volume performance
• Distributes pre-mixed solution through a central header system
• Compatible with two supplied product lines
• Pump and nozzles sold separately for flexible system configuration
• High-output foam application with 20–45 GPM (75.7–170.3 L/min) discharge volume
• Projects foam 25–30 ft. (7.6–9.1 m) for extended coverage
• Includes 50 ft. (15.2 m) discharge hose with 3/4 in. (19 mm) inside diameter
• Equipped with a 7 in. (17.8 cm) stainless steel wand, stainless steel ball valve, and zero-tip nozzle
• Durable stainless steel fluid fittings for corrosion resistance and long service life
• Features a 4 ft. (1.2 m) chemical inlet hose with 1/2 in. (12.7 mm) inside diameter and 1 lb check valve

• Compact 18 in. (45.7 cm) enclosure height
• Lockable enclosure design with provision for adding a padlock for enhanced security
• Ideal for centralized chemical systems requiring independent foam dispensing stations across multiple application areas



Requirements

• Compressed air supply: 40–80 PSI (2.8–5.5 bar) at 5–10 CFM (141.6–283.2 L/min)
• Liquid temperature range: 40–100°F (4.4–37.8°C)
• Pre-mixed solution must be supplied by a properly sized central header system
• Central system must provide 2 GPM flow rate at 40–80 PSI (2.8–5.5 bar)
• Chemicals must be formulated for foam application systems
• Chemicals must be compatible with unit materials and pump seals
• Consult the product manufacturer, SDS, or customer service for chemical compatibility verification before use
